John Deere 6930 Premium Transmission


John Deere 6930 Premium tractor photo
2006 - 2011
Model year
Series map:
6830 Premium
6930 Premium
104.4kw
115.6kw
Transmission options
20-speed partial power shift
32-speed partial power shift
infinitely variable transmission (IVT)
Transmission
TransmissionJohn Deere PowrQuad Plus
Typepartial power shift
Gears20 forward and reverse
ClutchPermaClutch II wet disc
Oil capacity59.2 qts
56.0 L
Four power shift gears (1-4) in five synchronized ranges (A-E) with left-hand power shuttle. Optional de-clutch button allows range shifting without using the foot clutch.
Speeds

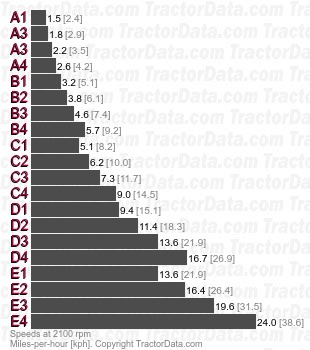

6930 Premium PowrQuad Plus partial power shift speeds
Transmission
TransmissionJohn Deere AutoQuad Plus
Typepartial power shift
Gears20 forward and reverse
ClutchPermaClutch II wet disc
Oil capacity59.2 qts
56.0 L
AutoQuad Plus adds automatic load-matched gear shifting to the PowrQuad transmission.
Speeds
6930 Premium AutoQuad Plus partial power shift speeds
Transmission
TransmissionJohn Deere Creeper
Typepartial power shift
Gears32 forward and reverse
ClutchPermaClutch II wet disc
Oil capacity59.2 qts
56.0 L
The optional creeper adds an additional twelve speeds to the PowrQuad or AutoQuad transmission.
Speeds
6930 Premium Creeper partial power shift speeds
Transmission
TransmissionJohn Deere AutoPowr
Typeinfinitely variable transmission (IVT)
Gearsinfinite forward and reverse
Oil capacity69.7 qts
66.0 L
The AutoPowr IVT is controlled by left-hand shuttle and a right-hand speed lever with speed wheel. The speed wheel sets the maximum speed. When set below 2kph, the transmission is automatically in creeper mode. AutoPowr available with 40kph and 50kph maximum speeds.
Speeds

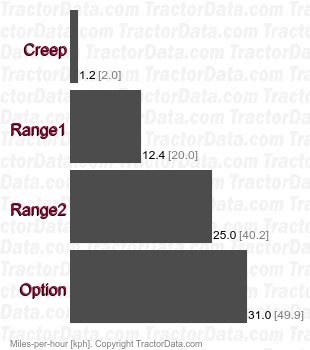

6930 Premium AutoPowr infinitely variable transmission (IVT) speeds
