John Deere 6630 Transmission


John Deere 6630 tractor photo
2006 - 2011
Model year
Series map:
6530
6630
6830
89.5kw
96.9kw
104.4kw
Transmission options
12-speed synchronized
16-speed power shuttle
16-speed partial power shift
24-speed partial power shift
Transmission
TransmissionJohn Deere SyncroPlus
Typesynchronized
Gears12 forward and 4 reverse
Clutchdual 225mm wet disc PermaClutch
Oil capacity52.8 qts
50.0 L
Three gears (1-3), plus reverse (R) in four ranges (A-D).
Speeds

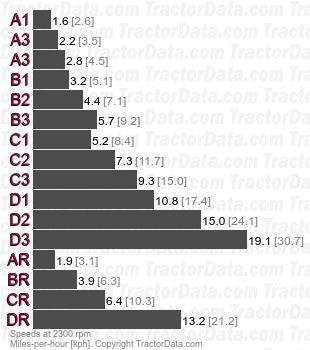

6630 SyncroPlus synchronized speeds
Transmission
TransmissionJohn Deere PowrReverser
Typepower shuttle
Gears16 forward and reverse
Clutchdual 225mm wet disc PermaClutch
Oil capacity52.8 qts
50.0 L
The PowrReverser transmission adds a left-hand shuttle lever to the SynchroPlus transmission. Reverse gear is replaced with a fourth gear in each range. Reverse speeds slightly higher than the matching forward speed.
Speeds

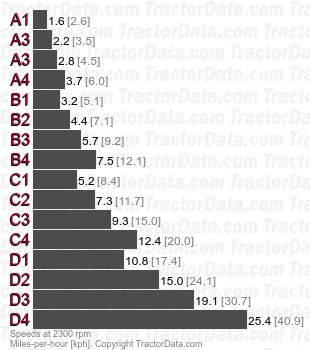

6630 PowrReverser power shuttle speeds
Transmission
TransmissionJohn Deere PowrQuad
Typepartial power shift
Gears16 forward and reverse
Clutchdual 225mm wet disc PermaClutch
Oil capacity52.8 qts
50.0 L
Four gears (1-4) in four ranges (A-D) with left-hand shuttle lever. Power shift between gears. Clutch must be used to shift between ranges. Reverse speeds are slightly higher than forward speeds. Optional creeper provides an additional 12 speeds in ranges A-C, from 0.26 kph to 1.5 kph. PowrQuad Plus provides push-button gear shifting on the range-shift lever.
Speeds

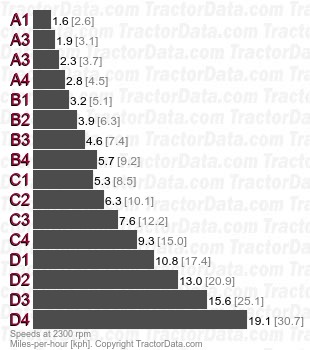

6630 PowrQuad partial power shift speeds
Transmission
TransmissionJohn Deere PowrQuad Plus
Typepartial power shift
Gears24 forward and reverse
Clutchdual 225mm wet disc PermaClutch
Oil capacity52.8 qts
50.0 L
Four gears (1-4) in six ranges (A-F) with left-hand shuttle lever. Power shift between gears. Clutch must be used to shift between ranges. Reverse speeds are slightly higher than forward speeds. Optional creeper provides an additional 12 speeds in ranges A-C, from 0.16 kph to 1.12 kph. PowrQuad Plus provides push-button gear shifting on the range-shift lever.
Speeds

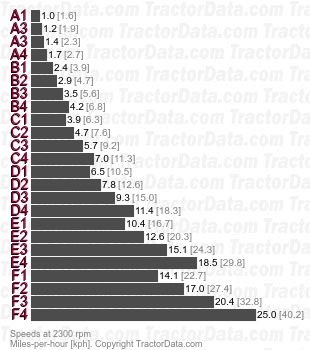

6630 PowrQuad Plus partial power shift speeds
