John Deere B Engine


John Deere B tractor photo
1935 - 1952
Model year
Two-Cylinder Letter Series
Row-Crop tractor
Series map:
B
A
31.1hp*
42.2hp*
*Estimated engine power for comparison only.
Engine options
John Deere 3.1L 2-cyl gasoline
John Deere 3.1L 2-cyl all fuel
Engine Detail
John Deere
gasoline
2-cylinder
liquid-cooled
Optional gasoline-only engine. Featured higher compression than the all-fuel engine. Produced about 28 HP.
Displacement190.4 ci
3.1 L
Bore/Stroke4.6875x5.50 inches
119 x 140 mm
Fuel systemMarvel-Schebler DLTX-67
Cooling systemthermo-siphon
Air cleaneroil bath
Compression5.87:1
Rated RPM1250
Firing order1-2
Starterelectric
Starter volts6
Coolant capacity36 qts
34.1 L
Sparkplug gap0.030 inches
0.762 mm
Point gap0.015 inches
0.381 mm
Intake valve clearance0.020 inches*Hot
0.508 mm
Exhaust valve clearance0.020 inches*Hot
0.508 mm
Engine Oil

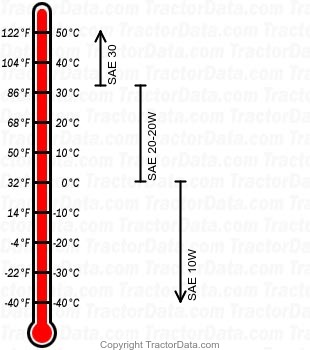

B gasoline engine oil chart
Oil capacity7 qts
6.6 L
Engine Detail
John Deere
all fuel
2-cylinder
liquid-cooled
Displacement190.4 ci
3.1 L
Bore/Stroke4.6875x5.50 inches
119 x 140 mm
Fuel systemMarvel-Schebler DLTX-73
Cooling systemthermo-siphon
Air cleaneroil bath
Compression4.71:1
Rated RPM1250
Firing order1-2
Starterelectric
Starter volts6
Coolant capacity36 qts
34.1 L
Sparkplug gap0.030 inches
0.762 mm
Point gap0.015 inches
0.381 mm
Intake valve clearance0.020 inches*Hot
0.508 mm
Exhaust valve clearance0.020 inches*Hot
0.508 mm
Engine Oil
B all fuel engine oil chart
Oil capacity7 qts
6.6 L
