CaseIH Maxxum 120 Tests


CaseIH Maxxum 120 tractor photo
2007 - 2014
Model year
Maxxum Series
Row-Crop tractor
Series:Maxxum 115Maxxum 120Maxxum 125
OCED Tractor Test 2701

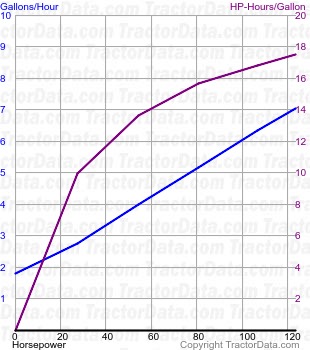

Maxxum 120 fuel use from test 852
OCED Tractor Test 2701
Diesel 16-speed 4WD
June 2012 - 2012,
Link: OCED Tractor Test 2701 file
PTO performance
Max power:129.8 hp
96.8 kW
Fuel use:7.0 gal/hour
26.5 l/hour
Power at rated engine speed:123.2 hp
91.9 kW
Fuel use:7.0 gal/hour
26.5 l/hour
Power at rated PTO speed:127.5 hp
95.1 kW
Fuel use:7.0 gal/hour
26.5 l/hour
Drawbar performance
Max power:94.5 hp
70.5 kW
Fuel use:7.0 gal/hour
26.5 l/hour
Gear 7 used for power test.
Max pull:10430 lbs
4731 kg
Gear 4 used for pull test.
