Kubota B1502 Transmission

Kubota B1502 tractor photo
1981 - 1985
B02 Series
Sub-Compact Utility tractor
Type:unsynchronized gear
Gears:6 forward and 2 reverse
Oil capacity:12.7 qts
12.0 L
Oil type:
0o↔100oF [-17o↔37oC]   : SAE 10W-30

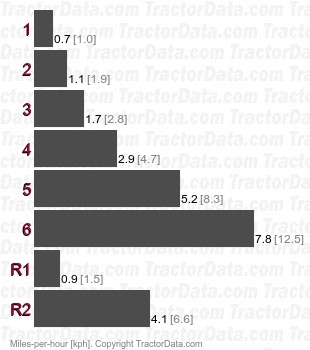

B1502  unsynchronized gear speeds
