Massey Ferguson 6120 Transmission

Massey Ferguson 6120 tractor photo
1995 - 1999
6100 Series
Utility tractor
Transmissions overview
16-speed two-speed power shift
32-speed four-speed power shift
Type:two-speed power shift
Gears:16 forward and reverse
Clutch:wet disc
Four gears in two ranges with two-speed power shift.
With 16.9-34 rear tires. Reverse speeds are 3% slower than forward. Also available in 40KPH version.

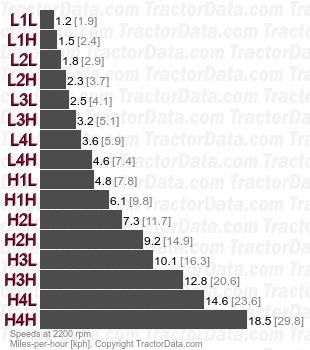

6120 Speedshift two-speed power shift speeds
Type:four-speed power shift
Gears:32 forward and reverse
Clutch:wet disc
Two ranges, each with four power shift gears in four synchronized ranges plus shuttle.
With 13.6R38 rear tires.

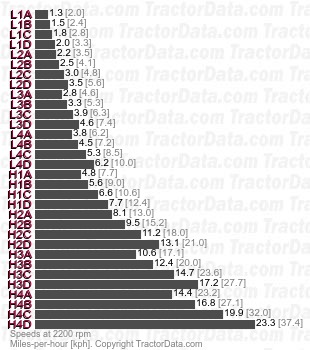

6120 Dynashift four-speed power shift speeds
