| 2008 - ???? |
6D Series | Utility tractor |
|
Transmissions overview |
9-speed unsynchronized gear |
9-speed partially synchronzied |
Transmission |
Transmission: | John Deere Collar Shift
|
Type: | unsynchronized gear
|
Gears: | 9 forward and 3 reverse
|
Clutch: | dry disc
|
Oil capacity: | 61.2 qts 57.9 L
|
Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Tractor must be stopped, and clutch used, to shift gear or range. |

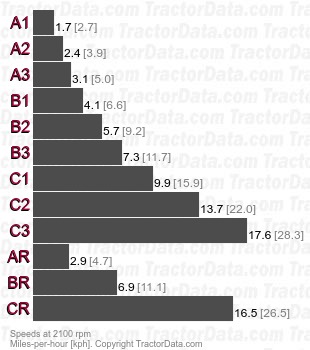

Speeds |
With 18.4-34 rear tires. |
|
Transmission |
Transmission: | John Deere Top Shaft Syncronized (TSS)
|
Type: | partially synchronzied
|
Gears: | 9 forward and 3 reverse
|
Clutch: | dry disc
|
Oil capacity: | 61.2 qts 57.9 L
|
Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Shifts between gears, including to reverse, are synchronized using the clutch. Shifts between ranges are not synchronized, the operator must stop the tractor and use the clutch. |
Speeds |
With 18.4-34 rear tires. |
|
