Tractors > CaseIH > Puma 170

CaseIH Puma 170 Tests



CaseIH Puma 170 tractor photo
2011 - 2013
Puma Series
Row-Crop tractor
Puma 165 ↑
Series:Puma 160 ← Puma 170 → Puma 185
OCED Tractor Test 2609

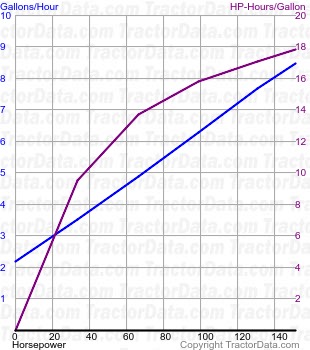

Puma 170 fuel use from test 799
OCED Tractor Test 2609
Diesel 19-speed 4WD
January 2011 - March 2011,
Link: OCED Tractor Test 2609 file
PTO performance
Max power:172.2 hp
128.4 kW
Fuel use:8.8 gal/hour
33.3 l/hour
Power at rated engine speed:150.9 hp
112.5 kW
Fuel use:8.5 gal/hour
32.2 l/hour
Power at rated PTO speed:170.8 hp
127.4 kW
Fuel use:8.9 gal/hour
33.7 l/hour
Drawbar performance
Max power:132.8 hp
99.0 kW
Fuel use:8.8 gal/hour
33.3 l/hour
Gear 9 used for power test.
Max pull:17205 lbs
7804 kg
Gear 8 used for pull test.
