CaseIH Puma 145 Transmission

CaseIH Puma 145 tractor photo
2011 - 2013
Puma Series
Row-Crop tractor
Puma 140
Series:Puma 130Puma 145Puma 160
Puma 150
Transmissions overview
18-speed full power shift
19-speed full power shift
continuously variable transmission (CVT)
Type:full power shift
Gears:18 forward and 6 reverse
Clutch:electro-hydraulic wet disc
Type:full power shift
Gears:19 forward and 6 reverse
Clutch:electro-hydraulic wet disc
Adds transport gear to the power shift, providing road speed at reduced engine RPMs.
Type:continuously variable transmission (CVT)
Gears:infinite forward and reverse
The CVT is available with optional 50 km-h top speed.

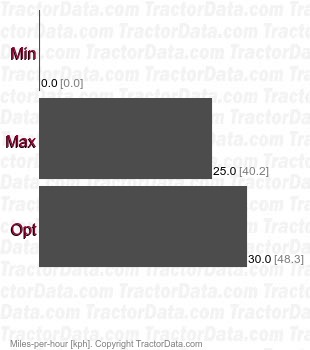

Puma 145  continuously variable transmission (CVT) speeds
