Tractors > John Deere > 8235R

John Deere 8235R Tests



John Deere 8235R tractor photo
2011 - 2013
8R Series
Row-Crop tractor
Series map:
8235R
8260R
235.0hp
260.0hp
Tractor Tests
OECD 2001: diesel Powershift 4WD
OECD 2001A: diesel Powershift 4WD
OCED Tractor Test 2001

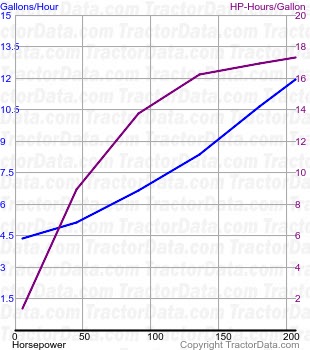

8235R fuel use from test 784
OCED Tractor Test 2001
Diesel Powershift 4WD
October 5 - 12, 2011
Link: OCED Tractor Test 2001 file
PTO performance
Max power235.14 hp
175.3 kW
Fuel use12.5 gal/hour
47.3 l/hour
Power at rated engine speed206.43 hp
153.9 kW
Fuel use11.9 gal/hour
45.0 l/hour
Power at rated PTO speed226.47 hp
168.9 kW
Fuel use12.5 gal/hour
47.3 l/hour
Drawbar performance
Max power180.59 hp
134.7 kW
Fuel use12.1 gal/hour
45.8 l/hour
Gear 8 used for power test.
Max pull23,632 lbs
10719 kg
Gear 4 used for pull test.
OCED Tractor Test 2001A
8235R fuel use from test 784A
OCED Tractor Test 2001A
Diesel Powershift 4WD
October 5 - 12, 2011
Link: OCED Tractor Test 2001A file
PTO performance
Max power235.14 hp
175.3 kW
Fuel use12.5 gal/hour
47.3 l/hour
Power at rated engine speed206.43 hp
153.9 kW
Fuel use11.9 gal/hour
45.0 l/hour
Power at rated PTO speed226.47 hp
168.9 kW
Fuel use12.5 gal/hour
47.3 l/hour
Drawbar performance
Max power180.59 hp
134.7 kW
Fuel use12.1 gal/hour
45.8 l/hour
Gear 8 used for power test.
Max pull23,632 lbs
10719 kg
Gear 4 used for pull test.
