Massey Ferguson 5480 Tests

Massey Ferguson 5480 tractor photo
2008 - 2013
5400 Series
Utility tractor
OCED Tractor Test 1933

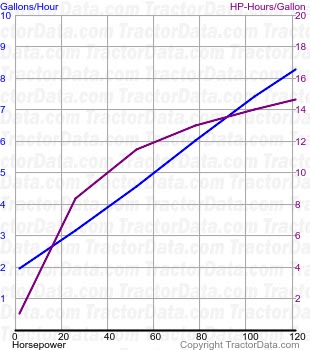

5480 fuel use from test 604
OCED Tractor Test 1933
Diesel 16-speed 4WD
June 12 - 27, 2008
Link: OCED Tractor Test 1933 file
PTO performance
Max power:134.95 hp
100.6 kW
Fuel use:7.7 gal/hour
29.1 l/hour
Power at rated engine speed:121.26 hp
90.4 kW
Fuel use:8.3 gal/hour
31.4 l/hour
Power at rated PTO speed:133.41 hp
99.5 kW
Fuel use:8.3 gal/hour
31.4 l/hour
Drawbar performance
Max power:103.10 hp
76.9 kW
Fuel use:8.2 gal/hour
31.0 l/hour
Gear 9 used for power test.
