Massey Ferguson 5470 Tests


Massey Ferguson 5470 tractor photo
2005 - 2013
Model year
5400 Series
Utility tractor
Series map:
5465
5470
5475
120.0hp
125.0hp
135.0hp
OCED Tractor Test 2531

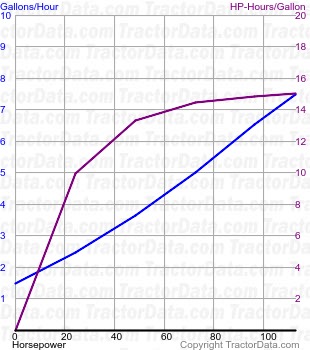

5470 fuel use from test 708
OCED Tractor Test 2531
Diesel 16-speed 4WD
April 2009 - May 2009,
Link: OCED Tractor Test 2531 file
PTO performance
Max power130.6 hp
97.4 kW
Fuel use7.7 gal/hour
29.1 l/hour
Power at rated engine speed112.6 hp
84.0 kW
Fuel use7.5 gal/hour
28.4 l/hour
Power at rated PTO speed128.2 hp
95.6 kW
Fuel use7.7 gal/hour
29.1 l/hour
Drawbar performance
Max power81.8 hp
61.0 kW
Fuel use6.4 gal/hour
24.2 l/hour
Gear 3A used for power test.
Max pull10475 lbs
4751 kg
Gear 2A used for pull test.
