John Deere 5090G Engine


No photo available
2009 - 2013
5G Series
Utility tractor
Agritalia built
Series:5080G5090G

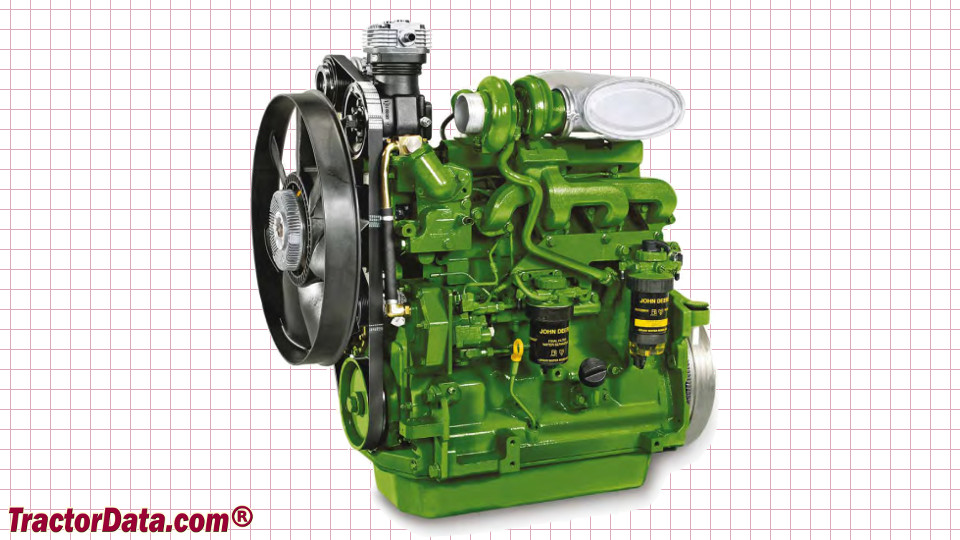

Engine Detail
John Deere 4045HAT80
turbocharged aftercooled diesel
4-cylinder
liquid-cooled
Displacement:275.5 ci
4.5 L
Bore/Stroke:4.19x5.00 inches
106 x 127 mm
Emissions:Stage IIIA
Power:90 hp
67.1 kW
Compression:19.0:1
Rated RPM:2300
Torque:269.2 lb-ft
365.0 Nm
Torque RPM:1600
Firing order:1-3-4-2
Starter:electric
Starter volts:12
Starter power:3.8 hp
2.8 kW
Coolant capacity:11 qts
10.4 L
 13.7 qts
13.0 L (cab)
Coolant change:2000 h

Intake valve clearance:0.014 inches
0.356 mm
Exhaust valve clearance:0.018 inches
0.457 mm
Engine Oil

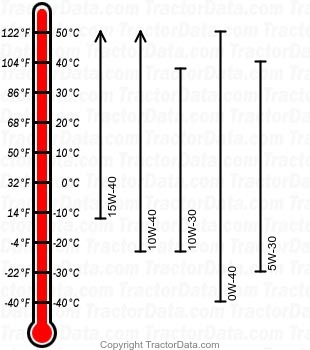

5090G diesel engine oil chart
Oil capacity:8.5 qts
8.0 L
Oil change:500 h
