John Deere 5720 Engine

John Deere 5720 tractor photo
2003 - 2008
Utility tractor
Engine Detail
John Deere 4045TL273
turbocharged diesel
Displacement:276 ci
4.5 L
Bore/Stroke:4.19x5.00 inches
106 x 127 mm
Emissions:Stage II
Power:80 hp
59.7 kW
Rated RPM:2300
Torque:228 lb-ft
309.2 Nm
Torque RPM:1500
Firing order:1-3-4-2
Starter volts:12
Starter power:4 hp
3.0 kW
Coolant capacity:14.3 qts
13.5 L
Coolant change:3000 h

Intake valve clearance:0.014 inches
0.356 mm
Exhaust valve clearance:0.018 inches
0.457 mm
Engine Oil

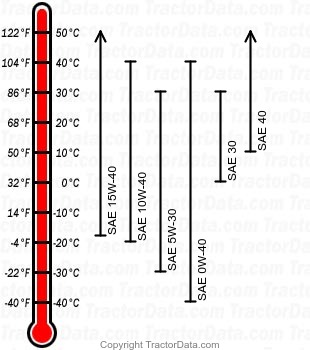

5720 diesel engine oil chart
Oil capacity:13.7 qts
13.0 L
Oil change:500 h
