Century 3642 Transmission

No photo available
Compact Utility tractor
Kukje built
Type:partially synchronized
Gears:12 forward and reverse
Oil capacity:37 qts
35.0 L
Oil type:
10oF [-12oC] : JDM J20C
70o↔-40oF [21o↔-40oC]   : JDM J20D

Four gears in three ranges with left-hand shuttle. Gear shift is synchronized with clutch. Tractor must be stopped to shift range and shuttle.
With 12.4-28 rear tires.

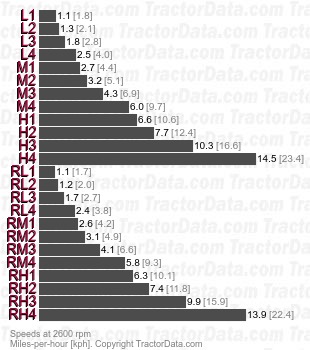

3642  partially synchronized speeds
