New Holland T5070 Tests

New Holland T5070 tractor photo
2008 - 2013
T5000 Series
Utility tractor
OCED Tractor Test 2519

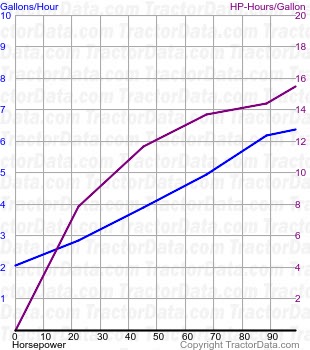

T5070 fuel use from test 741
OCED Tractor Test 2519
Diesel 12-speed 2WD
December 2008 - July 209,
Link: OCED Tractor Test 2519 file
PTO performance
Max power:103.0 hp
76.8 kW
Fuel use:6.0 gal/hour
22.7 l/hour
Power at rated engine speed:98.6 hp
73.5 kW
Fuel use:6.4 gal/hour
24.2 l/hour
Power at rated PTO speed:99.5 hp
74.2 kW
Fuel use:6.3 gal/hour
23.8 l/hour
Drawbar performance
Max power:77.8 hp
58.0 kW
Fuel use:6.2 gal/hour
23.5 l/hour
Gear 3II used for power test.
Max pull:6360 lbs
2884 kg
Gear 4I used for pull test.
