Massey Ferguson 8680 Tests


Massey Ferguson 8680 tractor photo
2009 - 2013
Model year
8600 Series
Row-Crop tractor
Series map:
8670
8680
290.0hp
320.0hp
Tractor Tests
OECD 2499: diesel SCR Dyna-VT 4WD
OECD 2559: diesel IEGR Dyna-VT 4WD
OCED Tractor Test 2499

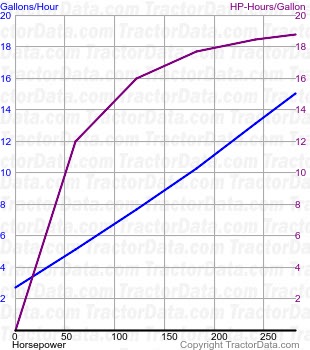

8680 fuel use from test 651
OCED Tractor Test 2499
Diesel SCR Dyna-VT 4WD
October 2008 - March 2009,
Link: OCED Tractor Test 2499 file
PTO performance
Max power316.6 hp
236.1 kW
Fuel use15.6 gal/hour
59.0 l/hour
Power at rated engine speed281.2 hp
209.7 kW
Fuel use15.0 gal/hour
56.8 l/hour
Power at rated PTO speed307.0 hp
228.9 kW
Fuel use15.7 gal/hour
59.4 l/hour
Drawbar performance
Max power240.7 hp
179.5 kW
Fuel use15.0 gal/hour
56.8 l/hour
Pull at 8.4 KPH
Max pull26680 lbs
12102 kg
Pull at 4.8 KPH
OCED Tractor Test 2559

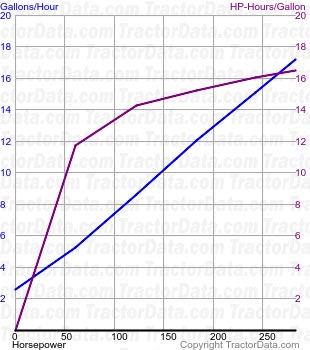

8680 fuel use from test 746
OCED Tractor Test 2559
Diesel IEGR Dyna-VT 4WD
October 2009 - March 2010,
Link: OCED Tractor Test 2559 file
PTO performance
Max power322.6 hp
240.6 kW
Fuel use18.0 gal/hour
68.1 l/hour
Power at rated engine speed282.7 hp
210.8 kW
Fuel use17.2 gal/hour
65.1 l/hour
Power at rated PTO speed305.6 hp
227.9 kW
Fuel use17.3 gal/hour
65.5 l/hour
Drawbar performance
Max power236.3 hp
176.2 kW
Fuel use17.2 gal/hour
65.1 l/hour
Pull at 9.0 KPH
Max pull26725 lbs
12122 kg
Pull at 5.1 KPH
