Tractors > Hesston > 70-90

Hesston 70-90 Transmission



Hesston 70-90 tractor photo
1985
90 Series
Utility tractor
Fiat built
Series map:
60-90
70-90
80-90
60.0hp
70.0hp
80.0hp
Transmission options
12-speed synchromesh
12-speed mechanical shuttle
20-speed creeper
Transmission
Typesynchromesh
Gears12 forward and 4 reverse
Clutch279.4mm dry disc
Four gears (1-4) in three ranges (I-III) plus reverse range.
Speeds

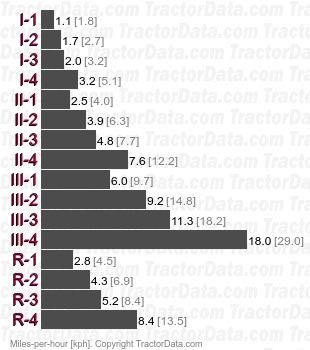

70-90 synchromesh speeds
Transmission
Typemechanical shuttle
Gears12 forward and reverse
Speeds
With 18.4-30 rear tires.

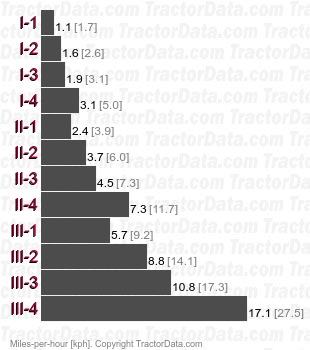

70-90 mechanical shuttle speeds
Transmission
Typecreeper
Gears20 forward and 8 reverse
Speeds
With 18.4-30 rear tires.

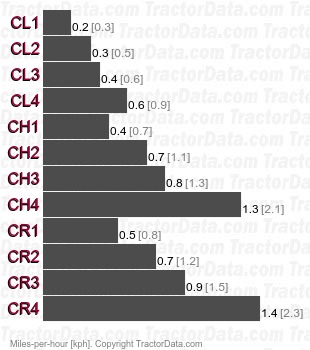

70-90 creeper speeds
