Tractors > J.I. Case > 4894

J.I. Case 4894 Tests



J.I. Case 4894 tractor photo
1983 - 1984
4WD 94 Series
Four-wheel Drive (4WD) tractor
Series map:
4694
4894
4994
261.0hp
300.0hp
400.0hp
Nebraska Tractor Test 1330

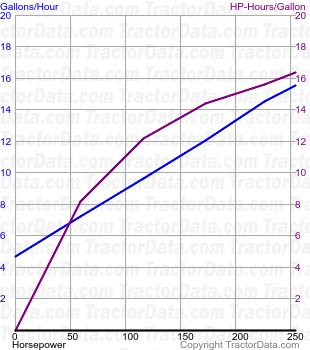

4894 fuel use from test 1330
Nebraska Tractor Test 1330
Diesel 12-speed 4WD
October 22 - 29, 1979
Link: Nebraska Tractor Test 1330 file
PTO performance
Power at rated engine speed253.41 hp
189.0 kW
Fuel use15.5 gal/hour
58.7 l/hour
Drawbar performance
Max power218.68 hp
163.1 kW
Fuel use15.4 gal/hour
58.3 l/hour
Gear 3-2 used for power test.
Max pull27,627 lbs
12531 kg
Gear 1-2 used for pull test.
