Ford 8240 Transmission


Ford 8240 tractor photo
1992 - 1995
PowerStar 40 Series
Row-Crop tractor
8210
Series:784082408340
8240
Transmissions overview
12-speed synchronized
16-speed four-speed power shift
Transmission
Transmission:SynchroShift
Type:synchronized
Gears:12 forward and reverse
Clutch:dry disc
Four gears (1-4) in three ranges (L/M/H) with right-hand shuttle lever. Gear shifts are synchronized. Shifts between medium and high ranges are synchronized, but the tractor should be stopped to shift to or from low range. Sychronized shuttle shifting. The 12-speed SynchroShift was standard on the 8240 SL.
Speeds
With 16.9-38 rear tires.
8240 SynchroShift synchronized speeds
Transmission
Transmission:ElectroShift/Pulse Command
Type:four-speed power shift
Gears:16 forward and reverse
Clutch:wet disc
Oil capacity:64 qts
60.6 L
Four power shift gears arranged in two synchronized ratio groups (1-4 and 5-8). Two synchronized ranges (low/high) and right-hand shuttle. Clutch must be used to shift range or move between the lower (1-4) and higher (5-8) gear ratio groups. Push-button power shifting between the four gears in a ratio group. Push-button de-clutching on the shuttle lever allow shifting without the foot clutch. The 16 power shift was standard on the 8240 SLE.
Speeds
With 16.9-38 rear tires.

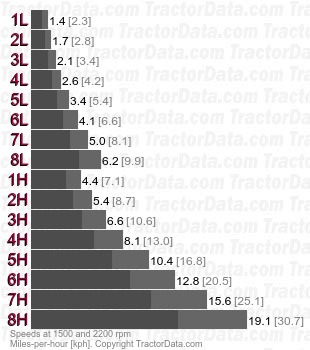

8240 ElectroShift/Pulse Command four-speed power shift speeds
