Ford 7610 Tests


Ford 7610 tractor photo
1982 - 1992
10 Series
Utility tractor
7600
Series:671076107710
7740
Nebraska Tractor Test 1432

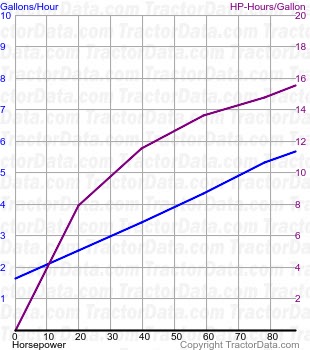

7610 fuel use from test 1432
Nebraska Tractor Test 1432
Diesel 16/4 4WD
April 14 - May 10, 1982
Link: Nebraska Tractor Test 1432 file
PTO performance
Power at rated engine speed:86.95 hp
64.8 kW
Fuel use:5.6 gal/hour
21.2 l/hour
Power at rated PTO speed:86.79 hp
64.7 kW
Fuel use:5.5 gal/hour
20.8 l/hour
Drawbar performance
Max power:74.08 hp
55.2 kW
Fuel use:5.5 gal/hour
20.8 l/hour
Gear 6L used for power test.
Max pull:8,804 lbs
3993 kg
Gear 3L used for pull test.
Nebraska Tractor Test 1433

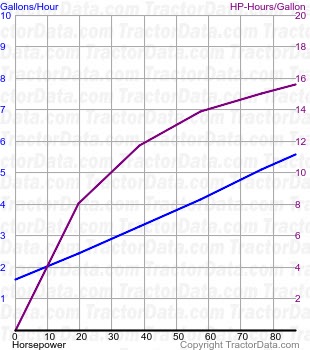

7610 fuel use from test 1433
Nebraska Tractor Test 1433
Diesel 16/8 powershift 2WD
April 2 - May 3, 1982
Link: Nebraska Tractor Test 1433 file
PTO performance
Power at rated engine speed:86.62 hp
64.6 kW
Fuel use:5.5 gal/hour
20.8 l/hour
Power at rated PTO speed:86.55 hp
64.5 kW
Fuel use:5.5 gal/hour
20.8 l/hour
Drawbar performance
Max power:72.33 hp
53.9 kW
Fuel use:5.3 gal/hour
20.1 l/hour
Gear 6L used for power test.
Max pull:8,638 lbs
3918 kg
Gear 3L used for pull test.
