Ford 6610 Engine


Ford 6610 tractor photo
1982 - 1993
10 Series
Utility tractor
Series map:
5610
6610
6710
68.5hp
78.5hp
78.5hp

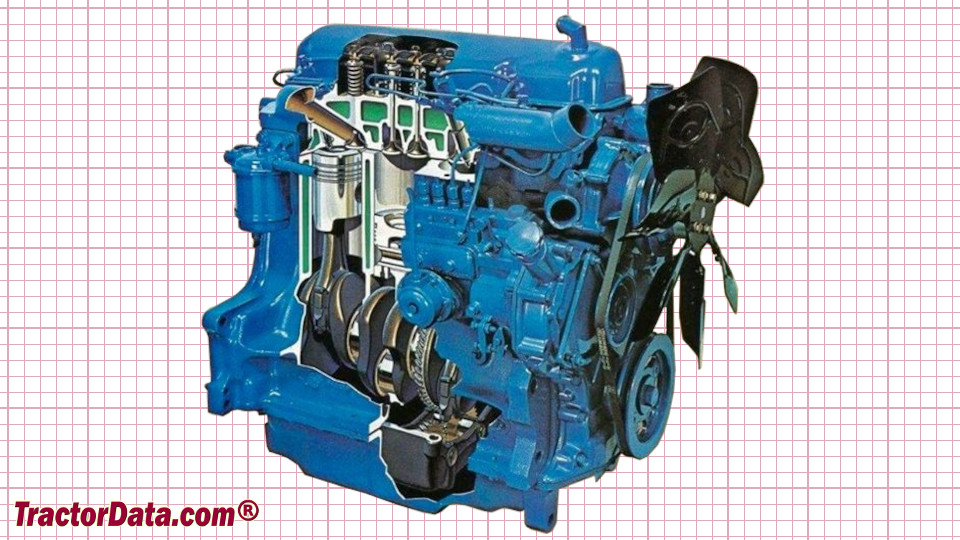

Engine Detail
Ford
diesel
4-cylinder
liquid-cooled
Displacement268 ci
4.4 L
Bore/Stroke4.4x4.4 inches
112 x 112 mm
Power78.5 hp
58.5 kW
Power (gross)82 hp
61.1 kW
Air cleanerdual paper elements
Compression16.3:1
Rated RPM2100
Torque219 lb-ft
297.0 Nm
Starter volts12
Oil capacity9 qts
8.5 L
Coolant capacity13.5 qts
12.8 L
