Ford 3230 Tests


Ford 3230 tractor photo
1990 - 1994
30 Utility Series
Utility tractor
2810
Series:32303430
OCED Tractor Test 1642

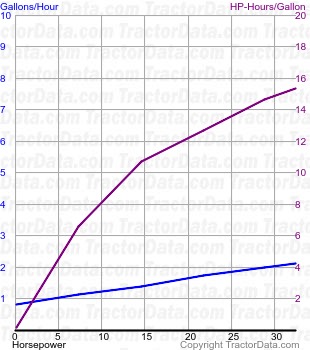

3230 fuel use from test 080
OCED Tractor Test 1642
Diesel 8x2 speed 4WD
April 9 - 25, 1991
Link: OCED Tractor Test 1642 file
PTO performance
Power at rated engine speed:32.33 hp
24.1 kW
Fuel use:2.1 gal/hour
7.9 l/hour
Power at rated PTO speed:30.99 hp
23.1 kW
Fuel use:2.0 gal/hour
7.6 l/hour
Drawbar performance
Max power:26.03 hp
19.4 kW
Fuel use:2.1 gal/hour
7.9 l/hour
Gear 1H used for power test.
Max pull:4,275 lbs
1939 kg
Gear 2L used for pull test.
