Ford 2910 Tests


Ford 2910 tractor photo
1983 - 1989
10 Utility Series
Utility tractor
Series map:
2810
2910
3610
34.3hp
40.5hp
47.5hp
Tractor Tests
NTTL 1491: diesel 8x2 2WD
NTTL 1492: diesel 8x4 synchro 2WD
Nebraska Tractor Test 1491

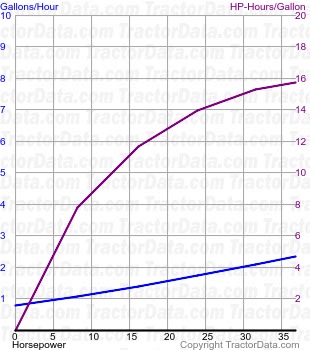

2910 fuel use from test 1491
Nebraska Tractor Test 1491
Diesel 8x2 2WD
September 14 - 28, 1983
Link: Nebraska Tractor Test 1491 file
PTO performance
Power at rated engine speed36.62 hp
27.3 kW
Fuel use2.3 gal/hour
8.7 l/hour
Power at rated PTO speed35.09 hp
26.2 kW
Fuel use2.2 gal/hour
8.3 l/hour
Drawbar performance
Max power29.09 hp
21.7 kW
Fuel use2.2 gal/hour
8.3 l/hour
Gear 5 used for power test.
Max pull4,237 lbs
1921 kg
Gear 2 used for pull test.
Nebraska Tractor Test 1492

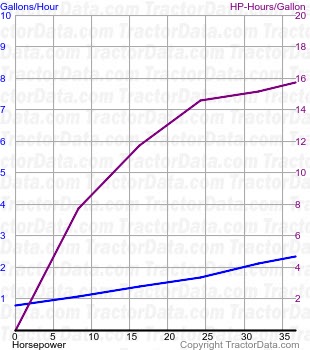

2910 fuel use from test 1492
Nebraska Tractor Test 1492
Diesel 8x4 synchro 2WD
September 14 - 26, 1983
Link: Nebraska Tractor Test 1492 file
PTO performance
Power at rated engine speed36.40 hp
27.1 kW
Fuel use2.3 gal/hour
8.7 l/hour
Power at rated PTO speed34.75 hp
25.9 kW
Fuel use2.2 gal/hour
8.3 l/hour
