| | 1983 - 1990 |
| 10 Utility Series | | Utility tractor |
|
Series map:
2610
2810
2910
40.5hp
34.3hp
40.5hp
| Transmissions overview |
| 8-speed |
| 6-speed mechanical shuttle |
| Transmission |
| Transmission | Dual Range
|
| Gears | 8 forward and 2 reverse
|
| Clutch | 330mm dry disc
|
| Oil capacity | 12.7 qts
12.0 L
|
| Speeds |
| With 13.6x28 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Type | mechanical shuttle
|
| Gears | 6 forward and 4 reverse
|

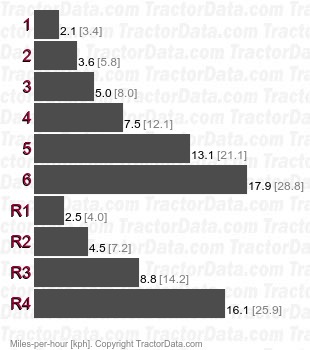

| Speeds |
|
