Tractors > John Deere > 3038E

John Deere 3038E Engine



John Deere 3038E tractor photo
2008 - 2023
Model year
Compact Utility tractor
Series map:
3032E
3038E
31.0hp
36.3hp
Engine Detail
Yanmar 3TNV84T
diesel
3-cylinder
liquid-cooled
Displacement91.5 ci
1.5 L
Bore/Stroke3.30x3.54 inches
84 x 90 mm
Power36.3 hp
27.1 kW
Power (gross)37.1 hp
27.7 kW
Air cleanerdry type
Compression19:1
Rated RPM2500
Torque88.5 lb-ft
120.0 Nm
Torque RPM1680
Starter volts12
Starter power1.9 hp
1.4 kW
Coolant capacity4.4 qts
4.2 L
Engine Oil

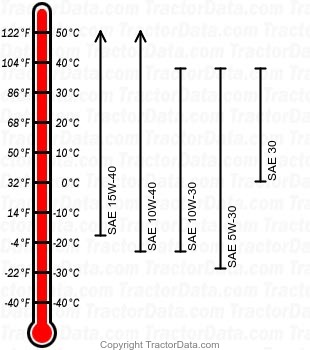

3038E diesel engine oil chart
Oil capacity4.8 qts
4.5 L
