Tractors > John Deere > 5415

John Deere 5415 Engine



John Deere 5415 tractor photo
2003 - 2008
Utility tractor
Agritalia built
Series map:
5315
5415
5515
49.6kw
55.2kw
61.1kw
Engine Detail
John Deere 4045DAT70
diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Power74 hp
55.2 kW
Compression17.6:1
Rated RPM2300
Torque199.1 lb-ft
270.0 Nm
Torque RPM1600
Firing order1-3-4-2
Starter volts12
Starter power3.8 hp
2.8 kW
ROPS Coolant capacity12.6 qts
11.9 L
Cab Coolant capacity13.7 qts
13.0 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

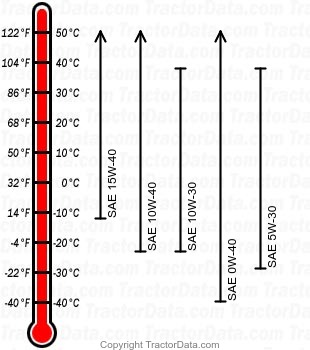

5415 diesel engine oil chart
Oil capacity8.5 qts
8.0 L
