Massey Ferguson Super 90 Engine


Massey Ferguson Super 90 tractor photo
1961 - 1965
Row-Crop tractor
88
Series:Super 90
Engines overview
Perkins 5.0L 4-cyl diesel
Continental 4.0L 4-cyl gasoline
Engine Detail

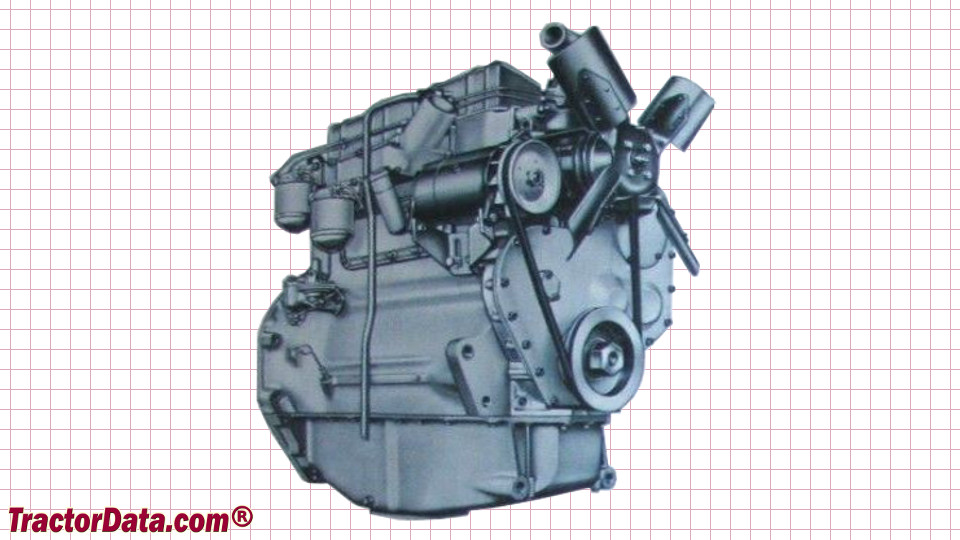

Perkins A4-300
diesel
4-cylinder
liquid-cooled
Displacement:302.2 ci
5.0 L
Bore/Stroke:4.50x4.75 inches
114 x 121 mm
Power:77 hp
57.4 kW
Fuel system:direct injection
Air cleaner:oil bath
Compression:16:1
Rated RPM:2000
Torque:223 lb-ft
302.4 Nm
Starter volts:12
Engine Detail
Continental E242
gasoline
4-cylinder
liquid-cooled
Displacement:242 ci
4.0 L
Bore/Stroke:3.875x5.125 inches
98 x 130 mm
Compression:7.3:1
Rated RPM:2000
Torque:212 lb-ft
287.5 Nm
Firing order:1-3-4-2
Starter volts:12
