John Deere 4105 Engine


John Deere 4105 tractor photo
2008 - 2014
Compact Utility tractor
Series:40054105
Engine Detail
Yanmar 3TNV84T-KJT
turbocharged diesel
3-cylinder
liquid-cooled
Displacement:91.5 ci
1.5 L
Bore/Stroke:3.30x3.54 inches
84 x 90 mm
Power:41 hp
30.6 kW
Air cleaner:dry
Compression:19:1
Rated RPM:2800
Torque:91.8 lb-ft
124.5 Nm
Torque RPM:1900
Starter volts:12
Starter power:1.9 hp
1.4 kW
Coolant capacity:5.6 qts
5.3 L
Engine Oil

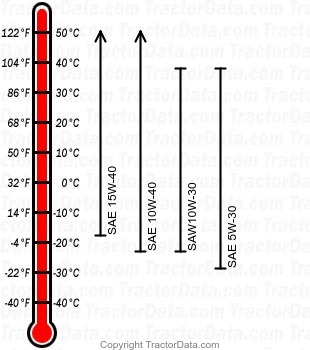

4105 diesel engine oil chart
Oil capacity:4.5 qts
4.3 L
