| | 1980 - 1990 |
| Utility tractor | | UTB/Universal built |
|
Series map:
260
310
26.7hp*
31.1hp*
*Estimated engine power for comparison only.
| Transmission options |
| 6-speed partially synchronized |
| 8-speed partially synchronized |
| Transmission |
| Type | partially synchronized
|
| Gears | 6 forward and 2 reverse
|
| Clutch | dry disc
|
| Oil capacity | 17 qts
16.1 L
|
| Oil type | | LONG Multi-Purpose Tractor Fluid |
|
| Gears 2-3 and 5-6 are synchronized. |

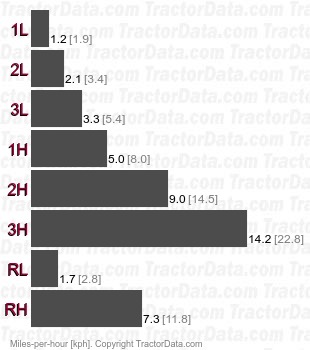

| Speeds |
| With 11.2-28 rear tires. |
|
| Transmission |
| Type | partially synchronized
|
| Gears | 8 forward and 2 reverse
|
| Clutch | 279.4mm dry disc
|
| Oil capacity | 17 qts
16.1 L
|
| Four gears (1-4), plus reverse (R) in two ranges (low/high). Gears 3-4 are synchronized. |

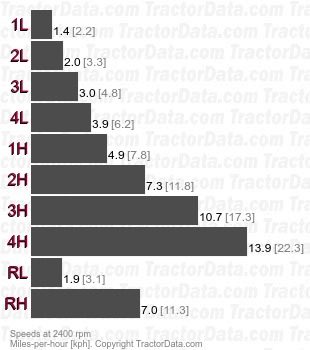

| Speeds |
| With 11.2-28 rear tires. |
|
