CaseIH Farmall 50 Transmission


CaseIH Farmall 50 tractor photo
2008 - 2011
Farmall Compact Series
Compact Utility tractor
Shibaura built
Series:Farmall 45Farmall 50Farmall 55
Farmall 50B
Transmissions overview
12-speed
continuously variable transmission
Transmission
Transmission:Synchro Shuttle
Gears:12 forward and reverse
Clutch:dry disc
Four synchronized gears in three ranges.
Transmission
Transmission:CVT
Type:continuously variable transmission
Gears:infinite forward and reverse
The mechanical CVT uses a steel chain between variable-diameter pulleys. Three speed modes (low, medium, high) with variable reactivity. Left-hand shuttle lever.

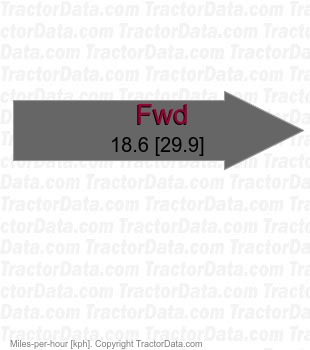

Speeds
Farmall 50 CVT continuously variable transmission speeds
