John Deere 6605 Transmission

John Deere 6605 tractor photo
1998 - 2002
Advantage Series
Utility tractor
Transmissions overview
12-speed fully synchronized
16-speed power shuttle
Transmission:John Deere SyncroVantage
Type:fully synchronized
Gears:12 forward and 4 reverse
Oil capacity:54.8 qts
51.9 L

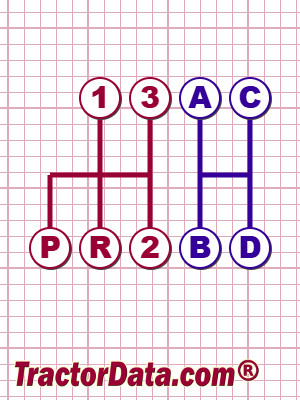

Three gears (1-3) plus reverse (R) with four ranges (A-D).
With 18.4-38 rear tires.

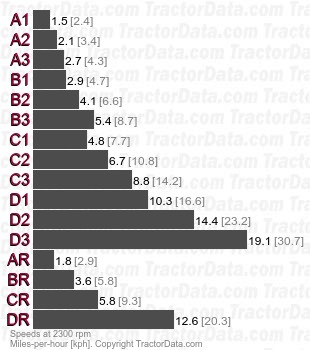

6605 SyncroVantage fully synchronized speeds
Transmission:John Deere SyncroVantage Power Reverser
Type:power shuttle
Gears:16 forward and reverse
Oil capacity:54.8 qts
51.9 L

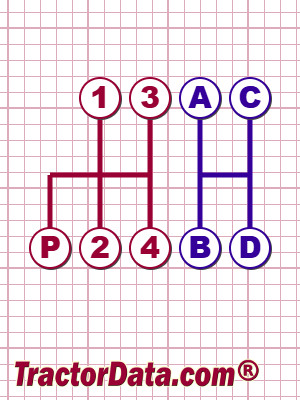

Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. Power shuttle allows direction changes without using the clutch.
With 18.4-34 rear tires.

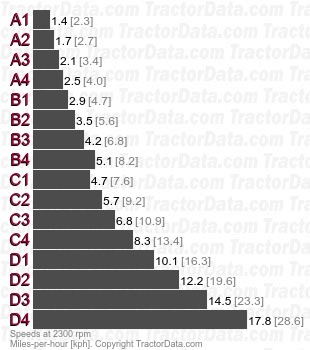

6605 SyncroVantage Power Reverser power shuttle speeds
