Tractors > J.I. Case > 2594

J.I. Case 2594 Transmission



J.I. Case 2594 tractor photo
1984
94 Series
Row-Crop tractor
Series:2394 ← 2594
2594 ↓
Transmissions overview
12-speed three-speed power shift
24-speed four-speed power shift

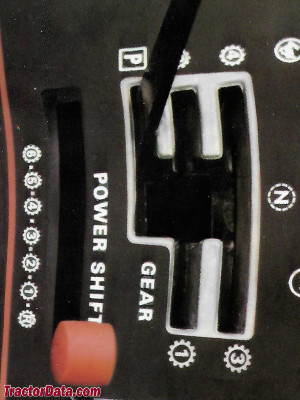

Transmission
Type:three-speed power shift
Gears:12 forward and 3 reverse
Oil capacity:128 qts
121.1 L
Three power-shift gears (1-3), plus reverse, in four ranges (1-4). Reverse does not function in fourth range.
Speeds
With 20.8x38 rear tires.

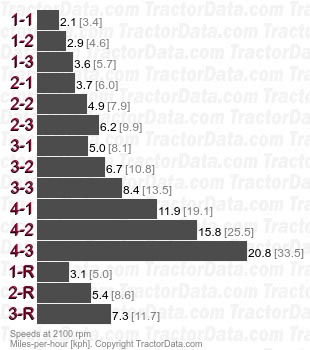

2594 three-speed power shift speeds

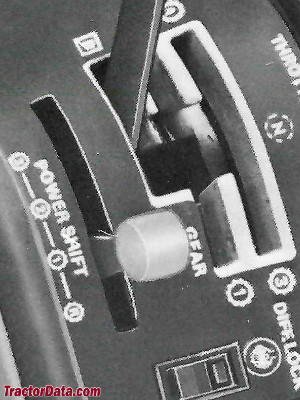

Transmission
Type:four-speed power shift
Gears:24 forward and 3 reverse
Oil capacity:128 qts
121.1 L
Six power shift gears (1-6), plus reverse, in four ranges (1-4). Reverse does not work in fourth range.
Speeds
With 20.8x38 rear tires.

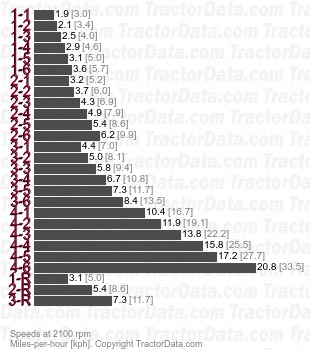

2594 four-speed power shift speeds
