Tractors > CaseIH > Steiger 485QT Quadtrac

CaseIH Steiger 485QT Quadtrac Engine



CaseIH Steiger 485QT Quadtrac tractor photo
2008 - 2010
Series map:
Steiger 435QT
Steiger 485QT
Steiger 535QT
435.0hp
485.0hp
535.0hp
Engine Detail
Iveco
turbocharged diesel
6-cylinder 24-valve
liquid-cooled
Displacement787 ci
12.9 L
Bore/Stroke5.315x5.906 inches
135 x 150 mm
EmissionsTier 3
Power485 hp
361.7 kW
Maximum Power534 hp
398.2 kW
Compression16.5:1
Rated RPM2000
Starter volts24
Engine Oil

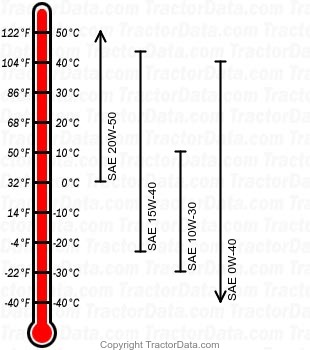

Steiger 485QT Quadtrac diesel engine oil chart
Oil capacity32.8 qts
31.0 L
