Tractors > CaseIH > Steiger 335

CaseIH Steiger 335 Engine



CaseIH Steiger 335 tractor photo
2008 - 2010
Four-wheel Drive (4WD) tractor
Series map:
Steiger 335
Steiger 385
335.0hp
385.0hp
Engine Detail
CNH
turbocharged aftercooled diesel
6-cylinder
liquid-cooled
Displacement540 ci
8.9 L
Bore/Stroke4.488x5.689 inches
114 x 145 mm
EmissionsTier 3
Power335 hp
249.8 kW
Maximum Power368 hp
274.4 kW
Air cleanerdual paper elements
Compression16.6:1
Rated RPM2000
Starter volts24
Engine Oil

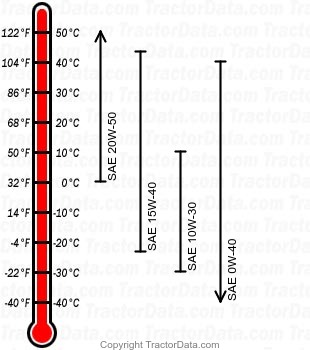

Steiger 335 diesel engine oil chart
Oil capacity29.2 qts
27.6 L
