Ford 7710 Transmission


Ford 7710 tractor photo
1982 - 1990
10 Series
Row-Crop tractor
7700
Series:76107710
Transmissions overview
8-speed
16-speed partial power shift
16-speed synchromesh partial power shift
Transmission
Transmission:Dual-range
Gears:8 forward and 2 reverse
Speeds
With 18.4x34 rear tires.

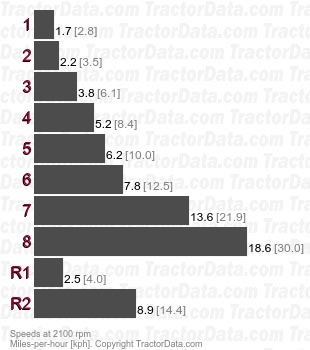

7710 Dual-range  speeds
Transmission
Transmission:Dual Power
Type:partial power shift
Gears:16 forward and 4 reverse
Clutch:330mm dry disc
The Dual Power adds a shift-on-the-move to an under-speed on the basic 8/2 gear transmission.
Speeds
With 18.4x34 rear tires.

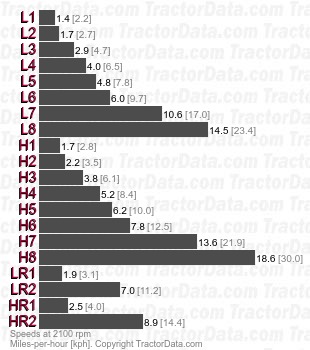

7710 Dual Power partial power shift speeds
Transmission
Transmission:Dual Power
Type:synchromesh partial power shift
Gears:16 forward and 8 reverse
Clutch:330mm dry disc
A shift-on-the-move under-speed added to the 8/4 synchromesh transmission.
Speeds
With 18.4x34 rear tires.

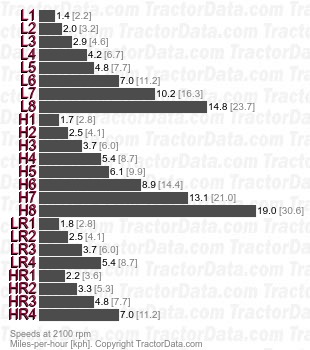

7710 Dual Power synchromesh partial power shift speeds
