Challenger MT285B Transmission


Challenger MT285B tractor photo
2005 - 2008
MT200B Series
Compact Utility tractor
Iseki built
MT285
Series:MT275BMT285BMT295B
Transmissions overview
hydrostatic
8-speed
12-speed partially synchronized with power shuttle
Transmission
Type:hydrostatic
Gears:infinite (3-range) forward and reverse
Oil capacity:40.2 qts
38.0 L
Speeds
With 17.5L-24 R4 rear tires.

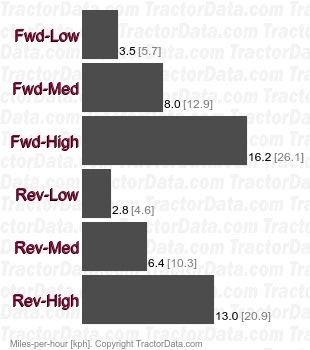

MT285B  hydrostatic speeds
Transmission
Transmission:SynchroShuttle
Gears:8 forward and reverse
Clutch:mechanical dry disc
Oil capacity:40.2 qts
38.0 L
Four non-synchronized gears in two non-synchronized ranges, with synchronized shuttle shift.
Speeds
With 16.9x24 R1 rear tires.
MT285B SynchroShuttle  speeds
Transmission
Transmission:PowerShuttle
Type:partially synchronized with power shuttle
Gears:12 forward and reverse
Clutch:dry main, wet shuttle
Oil capacity:40.2 qts
38.0 L
Three ranges with four gears each. Transmission can be shifted from forward to reverse on the go, without the clutch. In-range gear changes can be made on the go with the clutch.
Speeds
With 16.9x24 R1 rear tires.

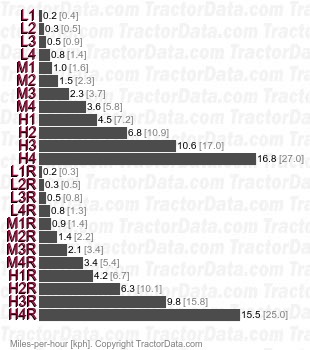

MT285B PowerShuttle partially synchronized with power shuttle speeds
