John Deere 2305 Transmission


John Deere 2305 tractor photo
2005 - 2010
2000 Twenty Series
Sub-Compact Utility tractor
Series map:
2305
24.1hp
Transmission
Typehydrostatic
Gearsinfinite forward and reverse (2-range)
Oil capacity13.6 qts
12.9 L
Hydrostatic transmission operated with two foot pedals and range-shift lever. Tractor must be stopped to shift ranges. Optional cruise control is engaged by dashboard button.

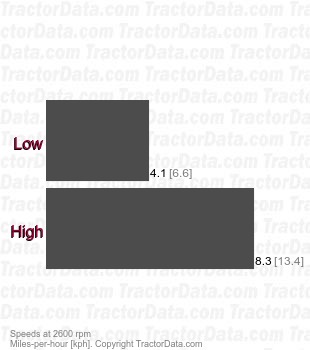

Speeds
With 26x12.00-12 R4 rear tires.
2305  hydrostatic speeds

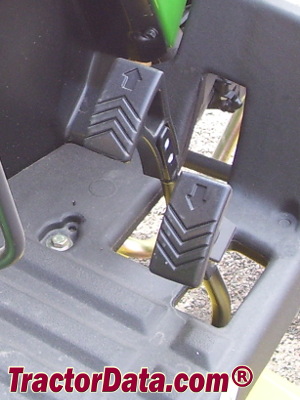

Shift Pattern
John Deere 2305 transmission controls
