Tractors > J.I. Case > 812-B Western Special

J.I. Case 812-B Western Special Transmission



J.I. Case 812-B Western Special tractor photo
1958 - 1959
800 B Series
Standard-tread tractor
Transmission
TransmissionCase-O-Matic
Typetorque converter
Gears8 forward and 2 reverse
Clutchhydraulic wet disc
Four gears, plus reservse, in two ranges controlled with a single shift lever. Torque converter transmission with bypass to lock in direct drive.

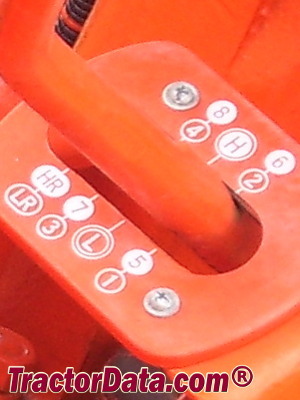

Shift Pattern
J.I. Case 812-B transmission controls

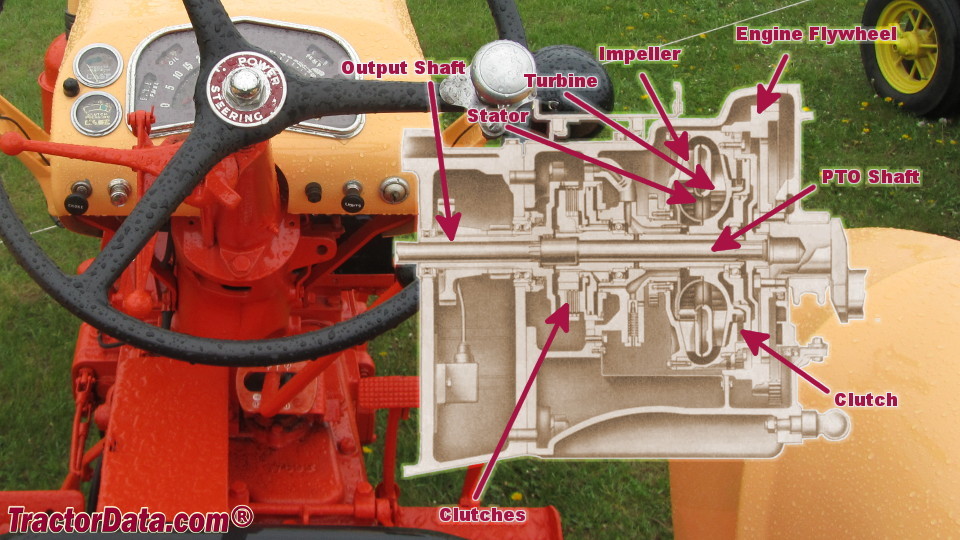

J.I. Case 812-B Transmission
J.I. Case 812-B transmission image
