| | 1958 - 1959 |
| 800 B Series | | Standard-tread tractor |
|
Series map:
800-B
60.0hp*
*Estimated engine power for comparison only.
| Engine Detail |
| J.I. Case |
| diesel |
| 4-cylinder |
| liquid-cooled |
| Displacement | 267 ci
4.4 L
|
| Bore/Stroke | 4.125x5.00 inches
105 x 127 mm
|
| Air cleaner | oil bath
|
| Compression | 15:1
|
| Rated RPM | 1800
|
| Starter | electric
|
| Starter volts | 12
|
| Oil capacity | 9 qts
8.5 L
|
| Coolant capacity | 30 qts
28.4 L
|

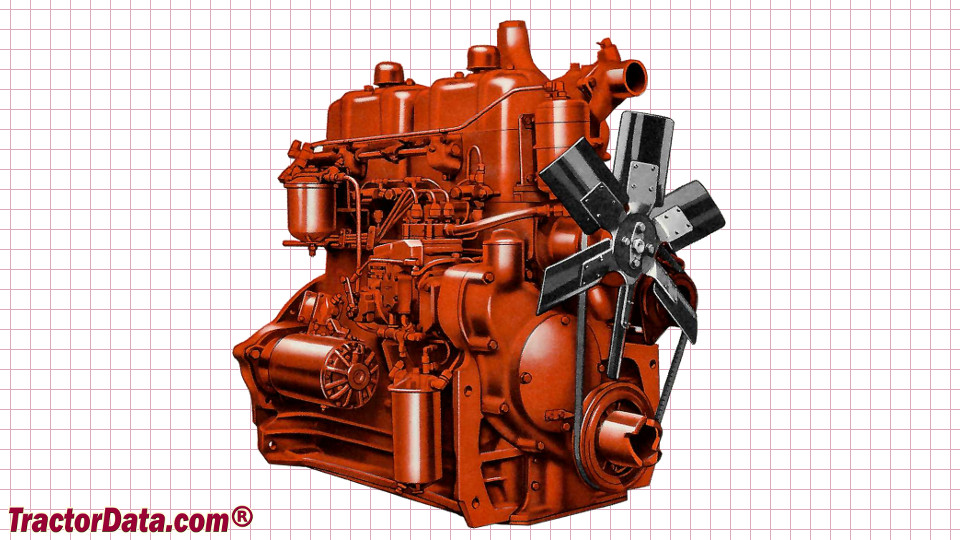

| J.I. Case 800-B Engine |
 |
