John Deere 9430 Transmission


John Deere 9430 tractor photo
2007 - 2011
9030 Series
Four-wheel Drive (4WD) tractor
9420
Series:933094309530
9460R
Transmissions overview
24-speed partial power shift
18-speed full power shift
Transmission
Transmission:John Deere PowrSync
Type:partial power shift
Gears:24 forward and 6 reverse
Clutch:hydraulic wet disc
Three gears (1-3) in four ranges (A-D) with high-low power shift. Gears and range shifts are synchronized using the clutch.
Speeds
With 620/70R42 tires.
9430 PowrSync partial power shift speeds
Transmission
Transmission:John Deere PowerShift
Type:full power shift
Gears:18 forward and 6 reverse
Clutch:electronic wet disc
Speeds
With 620/70R42 tires.

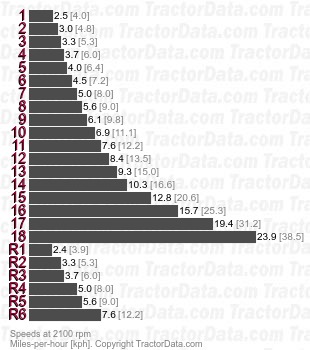

9430 PowerShift full power shift speeds
