John Deere 7430 Premium Transmission


John Deere 7430 Premium tractor photo
2007 - 2011
7030 Small-Frame Series
Row-Crop tractor
7420
Series:7330 Premium7430 Premium7530 Premium
Transmissions overview
16-speed partial power shift
20-speed partial power shift
infinitely variable transmission
Transmission
Transmission:PowrQuad Plus
Type:partial power shift
Gears:16 forward and reverse
Oil capacity:59.2 qts
56.0 L
Four ranges, each with four gears. Operated via range shift lever with gear shift buttons plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change.
Speeds
With 18.4R38 rear tires.
7430 Premium PowrQuad Plus partial power shift speeds
Transmission
Transmission:AutoQuad Plus
Type:partial power shift
Gears:20 forward and reverse
Oil capacity:59.2 qts
56.0 L
Five ranges, each with four gears. Operated via range shift lever with gear shift buttons plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change. Automatic mode allows for computer-controlled automatic shifting to match load.
John Deere 7430 Premium AutoQuad Plus transmission photo
Transmission
Transmission:John Deere IVT
Type:infinitely variable transmission
Gears:infinite forward and reverse
Oil capacity:69.6 qts
65.9 L
The IVT is operated with a right-hand speed control lever and left-hand reverser lever. The speed control lever is used to select speed in one of two ranges. A dial on the lever sets the maximum speed for the range. If a maximum speed of 2 kph or less is selected then the transmission will shift into creeper mode with a minimum speed of 0.05 kph.
Speeds

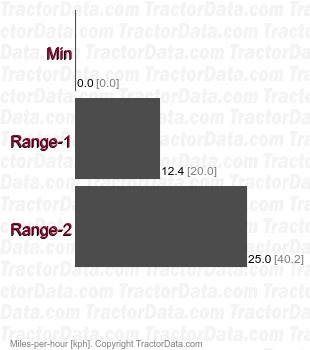

7430 Premium IVT infinitely variable transmission speeds
