Tractors > John Deere > 430C

John Deere 430C Tests



John Deere 430C tractor photo
1958 - 1960
Agricultural Crawler tractor
Series map:
430C
32.0hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 601

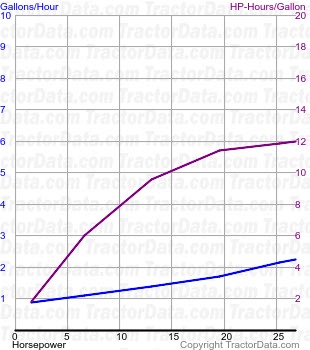

430C fuel use from test 601
Nebraska Tractor Test 601
Gasoline 5-speed crawler
October 15 - 25, 1956
Link: Nebraska Tractor Test 601 file
Belt power (max)28.76 hp
21.4 kW
Belt fuel use (max)2.6 gal/hour
9.8 l/hour
Drawbar performance
Max power23.53 hp
17.5 kW
Gear 3 used for power test.
Max pull4,862 lbs
2205 kg
Gear 1 used for pull test.
