| | 1956 - 1958 |
| Agricultural Crawler tractor |
|
Series map:
420C
32.0hp*
*Estimated engine power for comparison only.
| Engine Detail |
| John Deere |
| gasoline |
| 2-cylinder 4-valve |
| liquid-cooled |
| Displacement | 113 ci
1.9 L
|
| Bore/Stroke | 4.25x4.00 inches
108 x 102 mm
|
| Air cleaner | oil bath
|
| Compression | 7.2:1
|
| Rated RPM | 1850
|
| Starter volts | 6
|
| Oil capacity | 5 qts
4.7 L
|
| Coolant capacity | 11 qts
10.4 L
|

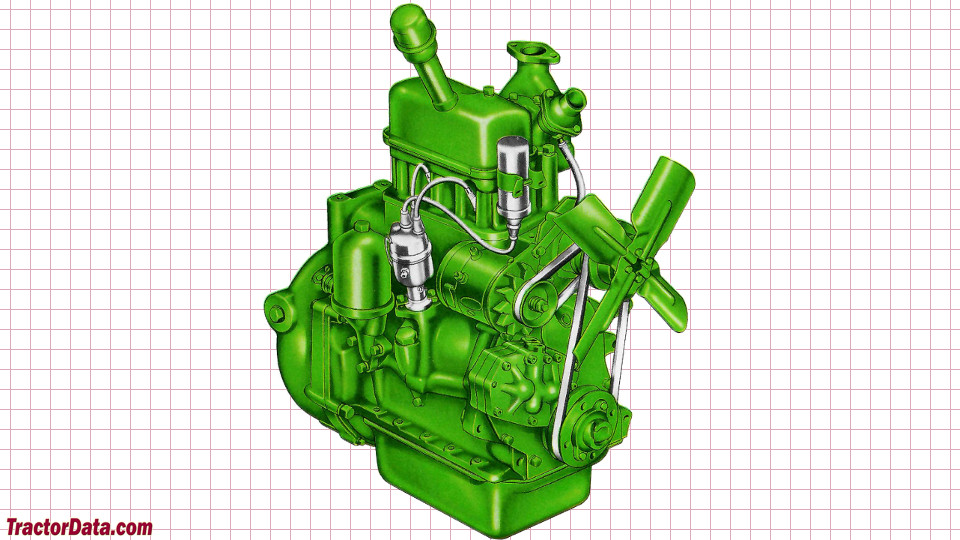

| John Deere 420C Engine |
 |
