| | 2004 - 2011 |
|
| MT500B Series | | Row-Crop tractor |
|
| Engine Detail |

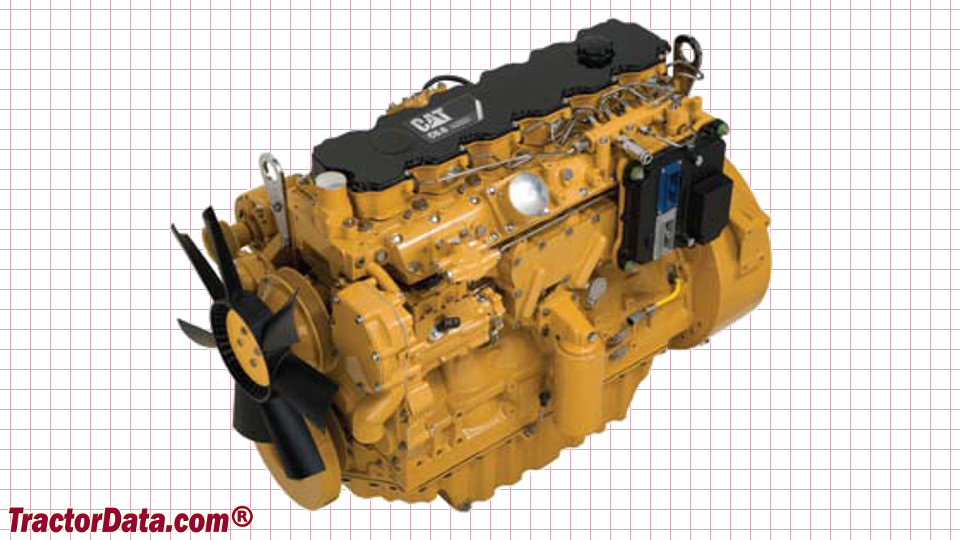

| Caterpillar C6.6 ACERT |
| turbocharged aftercooled diesel |
| 6-cylinder 24-valve |
| liquid-cooled inline |
| Displacement | 402.8 ci
6.6 L
|
| Bore/Stroke | 4.14x5.00 inches
105 x 127 mm
|
| Emissions | Tier III
|
| Power (gross) | 160 hp
119.3 kW
|
| Air cleaner | dry Donaldson FPG10-1
|
| Pre-heating | glow plugs
|
| Rated RPM | 2200
|
| Starter volts | 12
|
| Coolant capacity | 26.92 qts
25.5 L
|
| Challenger MT555B Engine |
 |
