Tractors > McCormick-Deering > Super W-6

McCormick-Deering Super W-6 Tests



McCormick-Deering Super W-6 tractor photo
1952 - 1954
Standard-tread tractor
Series map:
Super W-6
51.4hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 476: gasoline 5-speed 2WD
NTTL 485: LP gas 5-speed 2WD
Nebraska Tractor Test 476

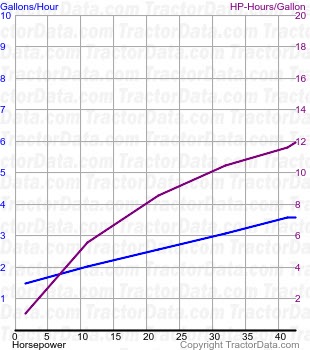

Super W-6 fuel use from test 476
Nebraska Tractor Test 476
Gasoline 5-speed 2WD
June 25 - July 7, 1952
Link: Nebraska Tractor Test 476 file
Belt power (max)46.25 hp
34.5 kW
Belt fuel use (max)4.0 gal/hour
15.1 l/hour
Drawbar performance
Max power41.57 hp
31.0 kW
Gear 3 used for power test.
Max pull5,663 lbs
2568 kg
Gear 1 used for pull test.
Nebraska Tractor Test 485

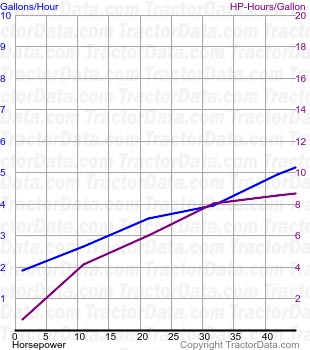

Super W-6 fuel use from test 485
Nebraska Tractor Test 485
LP gas 5-speed 2WD
October 1 - 13, 1952
Link: Nebraska Tractor Test 485 file
Belt power (max)47.53 hp
35.4 kW
Belt fuel use (max)5.5 gal/hour
20.8 l/hour
Drawbar performance
Max power42.64 hp
31.8 kW
Gear 3 used for power test.
Max pull5,775 lbs
2619 kg
Gear 1 used for pull test.
