John Deere 4510 Engine


John Deere 4510 tractor photo
2003 - 2004
4000 Ten Compact Series
Compact Utility tractor
4500
Series:441045104610
4120
Engine Detail
Yanmar 4TNE84
diesel
4-cylinder
liquid-cooled
Displacement:122 ci
2.0 L
Bore/Stroke:3.307x3.543 inches
84 x 90 mm
Power (gross):38.4 hp
28.6 kW
Air cleaner:dry with safety element
Compression:18:1
Rated RPM:2600
Torque:92 lb-ft
124.8 Nm
Torque RPM:1700
Starter volts:12
Starter power:2.7 hp
2.0 kW
Coolant capacity:6.4 qts
6.1 L
Engine Oil

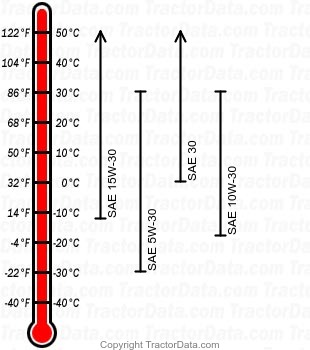

4510 diesel engine oil chart
Oil capacity:5.1 qts
4.8 L
