| | 1993 - 1995 |
| NX Series | | Compact Utility tractor | | Kubota built |
|
Series map:
NX240
NX260
17.7kw
19.1kw
Note: the Hinomoto model NX260 is the same as the Kubota GL260. The following data is from the GL260 listing. |
| Transmission options |
| 16-speed gear |
| 16-speed power shift |
| Transmission |
| Type | gear
|
| Gears | 16 forward and reverse
|
| Clutch | dry disc
|
| Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift. |

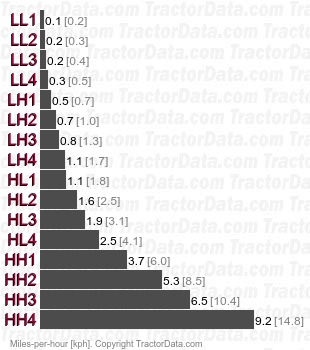

| Speeds |
|
| Transmission |
| Type | power shift
|
| Gears | 16 forward and reverse
|
