Farmall Cub Tests



Farmall Cub tractor photo
1947 - 1964
Series map:
Cub
12.2hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 386: gasoline 3-speed 2WD
NTTL 575: gasoline 3-speed 2WD
Nebraska Tractor Test 386

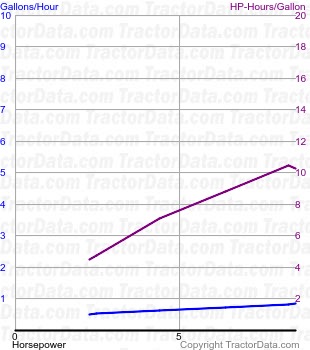

Cub fuel use from test 386
Nebraska Tractor Test 386
Gasoline 3-speed 2WD
September 29 - October 9, 1947
Link: Nebraska Tractor Test 386 file
Belt power (max)9.23 hp
6.9 kW
Belt fuel use (max)0.8 gal/hour
3.0 l/hour
Drawbar performance
Max power8.47 hp
6.3 kW
Gear 2 used for power test.
Max pull1,596 lbs
723 kg
Gear 1 used for pull test.
Nebraska Tractor Test 575

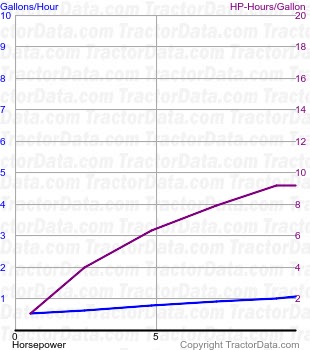

Cub fuel use from test 575
Nebraska Tractor Test 575
Gasoline 3-speed 2WD
May 18 - June 3, 1956
Link: Nebraska Tractor Test 575 file
Belt power (max)10.39 hp
7.7 kW
Belt fuel use (max)1.1 gal/hour
4.2 l/hour
Drawbar performance
Max power9.87 hp
7.4 kW
Gear 2 used for power test.
Max pull1,605 lbs
728 kg
Gear 1 used for pull test.
