| | 66 Series | | Row-Crop tractor |
|
Series map:
1066
1468
1566
140.0hp*
147.8hp*
183.0hp
Note: the Farmall model 1468 is the same as the International Harvester 1468. The following data is from the 1468 listing. |
| Engine Detail |
| International DV-550 |
| diesel |
| 8-cylinder |
| liquid-cooled V-8 |
| Displacement | 548.7 ci
9.0 L
|
| Bore/Stroke | 4.50x4.3125 inches
114 x 110 mm
|
| Pre-heating | ether injection
|
| Rated RPM | 2400
|
| Starter | electric
|
| Starter volts | 12
|
| Oil capacity | 16 qts
15.1 L
|
| Coolant capacity | 30 qts
28.4 L
|

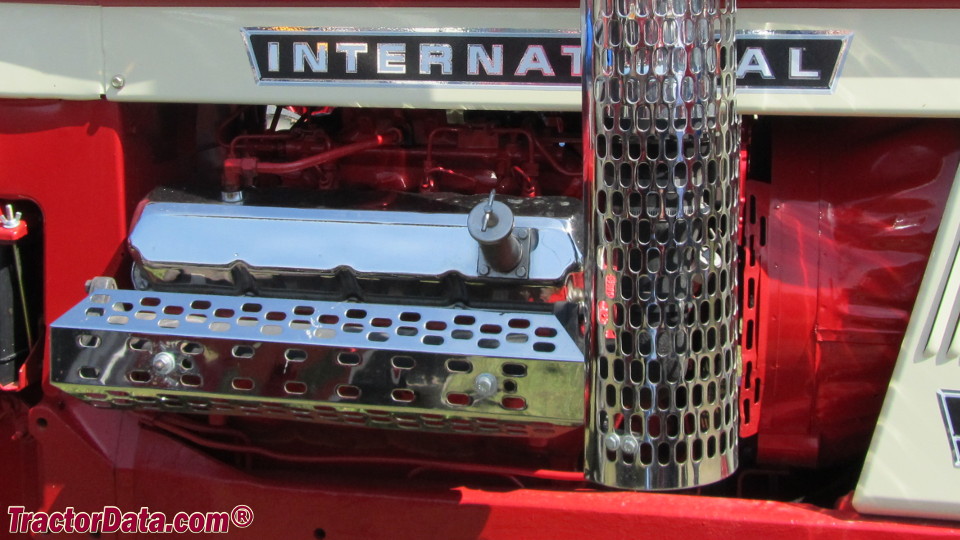

| Farmall 1468 Engine |
 |
